Goodridge 200 Series Braided Nitrile Hose is the premier stainless steel braided nitrile hose. The 200 series hose is designed for use with a wide range of re-usable aluminium hose ends and provides essential protection and resistance to high pressure, temperature, vibration, fire risks and chafing. It is constructed of a seamless synthetic CPE inner with an integral stainless steel braid and a high tensile stainless steel outer braid. 200 Series hose has the highest corrosion and fire resistance threshold of any stainless braided nitrile hose available.
It can be used with all synthetic lubricants, fuels, oils, coolants and alcohols including methanol and nitromethane. This hose is perfectly manufactured for efficient and reliable use with 236, 336 and 2776 Series Hose Ends.

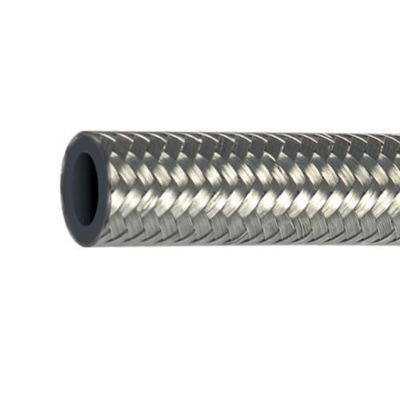

Goodridge 200 Series Hose
The traditional and premier stainless steel braided nitrile hose. Suitable for oil, fuel (except in cockpit) and water from -46°C to +150°C.

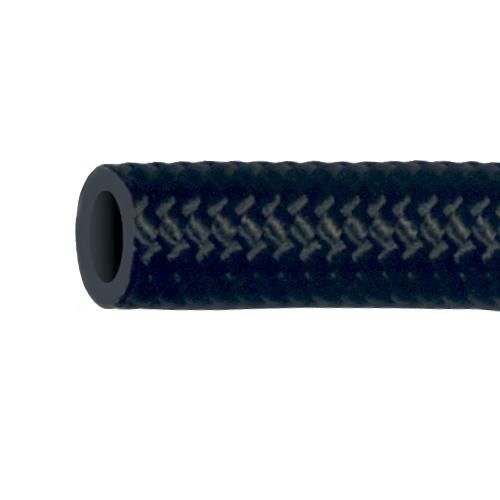

Goodridge 210 Series Hose
Based on the 200 series hose. The 210 series has a lightweight fibre braid, with high abrasion resistance. It is the perfect solution as
a lightweight alternative to 200 series, where the robust stainless steel braid is not necessary and weight saving is paramount. Suitable
for oil, fuel (except in cockpit) and water from -40°C to +148°C.
| Type | Size | ID " | OD " | Fittings | Temp ºC | Working Press. PSI | Burst Press. PSI | Min. Bend Radius | Weight Per Mtr |
|---|
| Max | Min |
|---|
| 200 Series (Stainless Steel Braid) | -06 | .34 | .56 | 1136, 236 & 336 | +150 | -40 | 1000 | 6000 | 2.500" | 0.201Kg |
| -08 | .44 | .64 | 1000 | 5000 | 3.500" | 0.271Kg |
| -10 | .56 | .80 | 1000 | 5000 | 4.000" | 0.348Kg |
| -12 | .69 | .93 | 1000 | 3750 | 4.500" | 0.421Kg |
| -16 | .88 | 1.15 | 750 | 2500 | 5.500" | 0.522Kg |
| 210 Series (Black Cloth Braid) | -06 | .34 | .56 | 1136, 236 & 336 | +148 | -40 | 500 | 2000 | 2.500" | 0.141Kg |
| -08 | .44 | .67 | 500 | 2000 | 3.500" | 0.179Kg |
| -10 | .56 | .82 | 500 | 2000 | 4.000" | 0.231Kg |
| -12 | .69 | .96 | 350 | 1400 | 4.500" | 0.372Kg |
| -16 | .88 | 1.15 | 350 | 1400 | 5.500" | 0.476Kg |
If you are using -06 or -08 hose for fuel then you should consider using 201 hose. 200 series is not compatible with E85 fuels, 201 is compatible E85.
