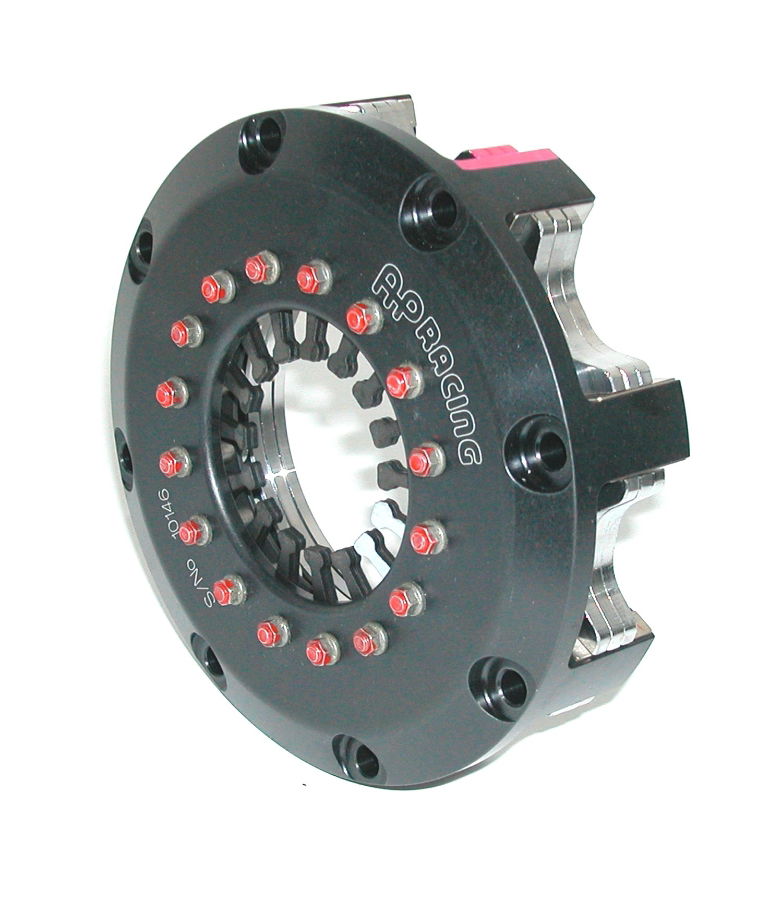

Typical CP6003 Clutch Applications:
- Single Seater.
- Touring Car.
Features:
Push Type.
Stepped or Flat Flywheel Fixing.
stepped is inner diameter location, with optional external spigot location.
8 bolt, one piece cover and lugs.
machined from billet. Provides rigidity and strength and cooler running, allows dust and debris to escape.
Torque Capacity Nm (lbs/ft)
- CP6003-CH90-SF - 630 (465)
- CP6003-OH90-SF - 471 (348)
Release Load - Max Peak Worn - daN
- CP6003-CH90-SF - 450
- CP6003-OH90-SF - 375
Release Load - At Travel - daN
- CP6003-CH90-SF - 300
- CP6003-OH90-SF - 250
Set-up Height - New
- CP6003-CH90-SF - 36.04mm
- CP6003-OH90-SF - 35.78mm
Set-up Height - Max Worn
- CP6003-CH90-SF - 38.85mm
- CP6003-OH90-SF - 38.59mm
Clutch "Wear In" 0.75mm
Weight (Including D/Plates) Kg 3.30
Complete Assy Inertia (Kgm²) 0.0102
Driven Plate & Hub Inertia (Kgm²) 0.00196
Release Bearings
- Outer race rotates - CP3457-1 or -9
- Inner race rotates - CP3457-11
Driven Plate Thickness
New = 2.63mm Nom. / Worn = 2.38mm Min.
Driven Plate Types
- CP3414 type driven plate- Back to Back
Spare Parts Part Numbers
- Main Pressure Plate CP4124-103
- Intermediate Pressure Plate CP4124-102
- Wear Clips CP4073-123 x
