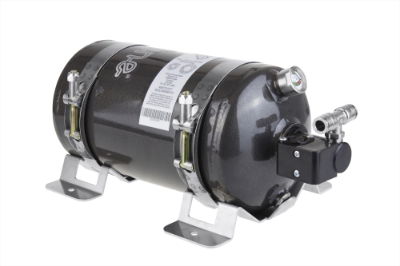

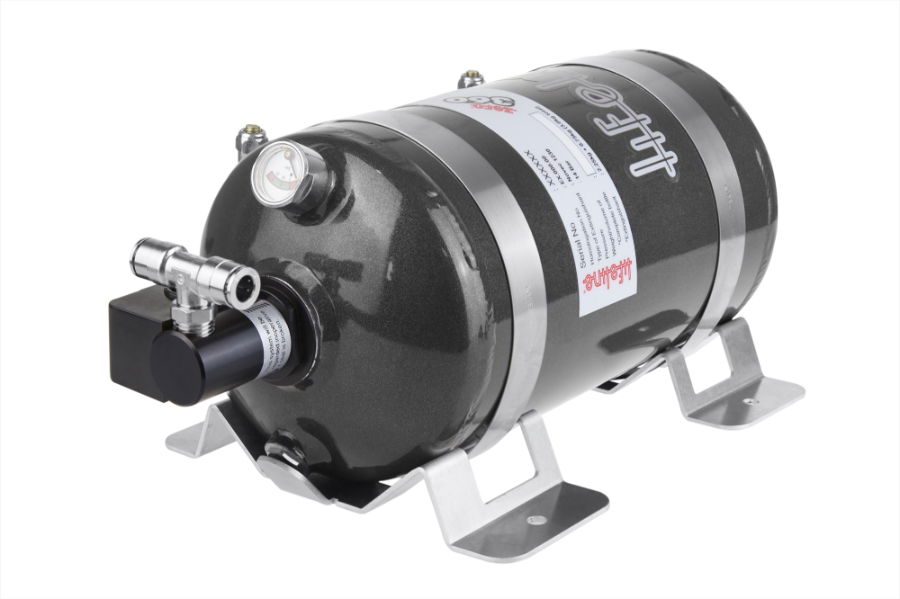

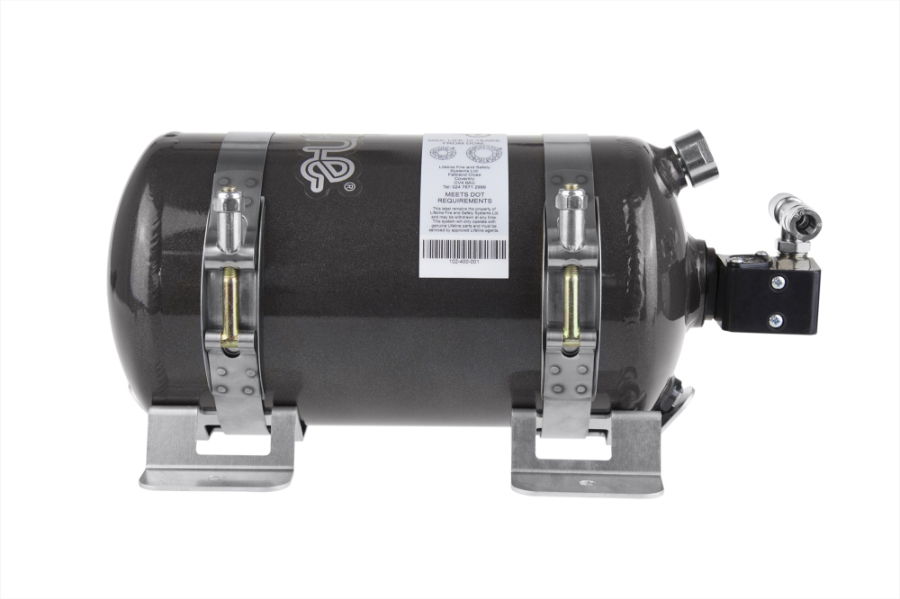

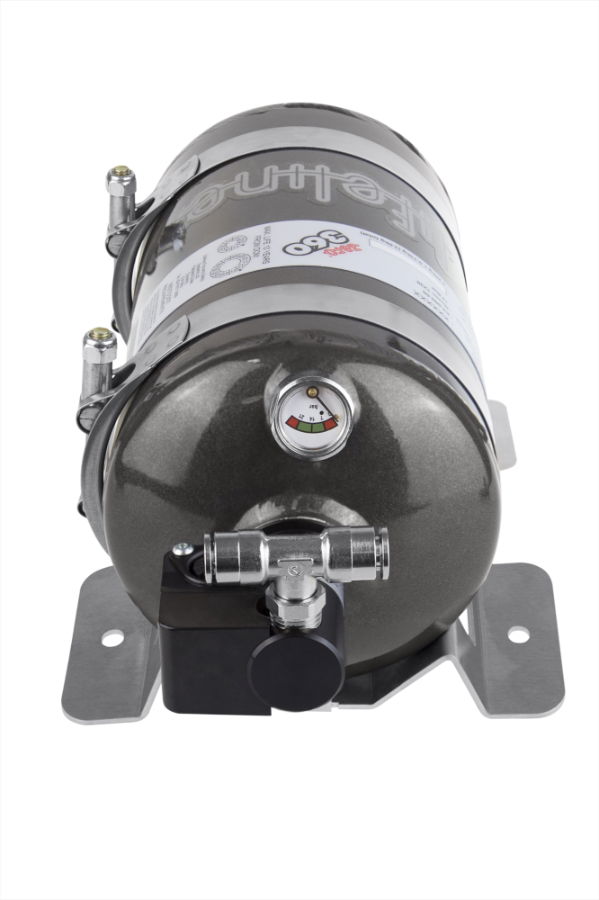

The Novec 1230 Zero 360 range of car fire extinguishers offer all of the advantages of a small compact system without compromising on performance. This makes the 3kg models particularly suitable for single seater applications. This Lifeline Zero 360 Novec 1230 3Kg electrical extinguisher system is manufactured using an aluminium cylinder that offers weight and space saving benefits. Expertly designed to suit all Club Level, Historic and Fast Road applications.
Electric systems are activated by pressing a strategically mounted momentary push button. Using a military specification actuator to detonate the extinguisher, the actuator extends a steel pin upon activation breaking a frangible seal in the neck of the cylinder and thus discharging the contents. All electrical systems have their own independent power supply called a power pack that has facilities for checking the battery strength and circuit continuity as well as giving a visible indication that the system is armed.
This Lifeline Zero 360 Novec 1230 3Kg electrical extinguisher kit was formerly known as a 104-300-003.
This series of systems has been awarded FIA homologation number EX.028.08.
This system is available in either a silver painted or polished finish. There is also available a bottle only option or just the installation kit which can be useful if you have multiple cars. The installation kit is everything listed in the full kit but does not include the actual extinguisher bottle.
| Length (mm) |
288 |
| Diameter (mm) |
125 |
| Weight (Kg) |
3.9 |
| Capacity (Kg) |
3.00 |
| Homologation |
EX.042.17 |
| Technical List |
16 |
The full kit includes:
| Product Code |
Description |
Quantity |
| 106-001-008-B |
Zero 360 3.0kg Electrical - Bottle Only |
1.000 |
| 952-408-002 |
8mm Bulkhead Fitting |
1.000 |
| 990-100-001 |
Decal Pack |
1.000 |
| 952-408-001 |
8mm Equal T Connector |
1.000 |
| 951-200-002 |
Tube Clips - Fits all Sizes |
5.000 |
| 951-101-008 |
8mm - Alloy Semi Rigid Tube - per metre |
8.000 |
| 920-100-008-FIA |
Bracket & Straps - Medium - Stored Pressure |
1.000 |
| 955-300-004 |
Zero 360 Double 'Z' Nozzle - Straight Inlet - c/w Cartridge |
3.000 |
| 955-300-003 |
Zero 360 Nozzle - Straight Inlet & Locking Nut |
2.000 |
| 952-408-007 |
8mm 4 Way Equal Cross Connector |
1.000 |
| 941-000-001 |
Power Pack - Current - DIN Socket |
1.000 |
| 943-101-001 |
Plug & Lead Assembly - Standard |
2.000 |
| 942-100-004 |
Switch - Internal/External - Waterproof - Aluminium Bezel |
2.000 |
This extinguisher meets FIA Technical List 16 requirements and is suitable for competition in Motorsport UK and FIA events past 2022. You should however consult your series/championship regulations before purchasing.
