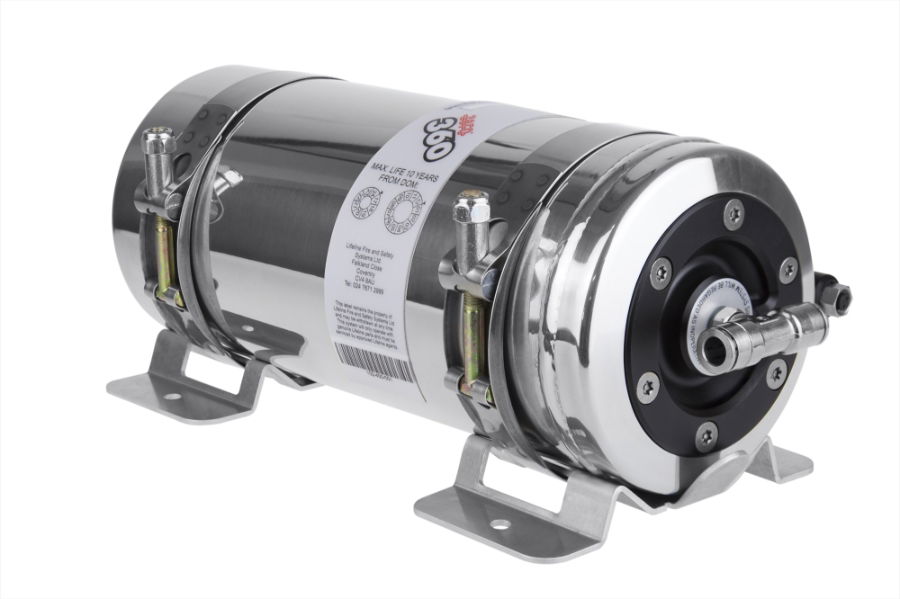

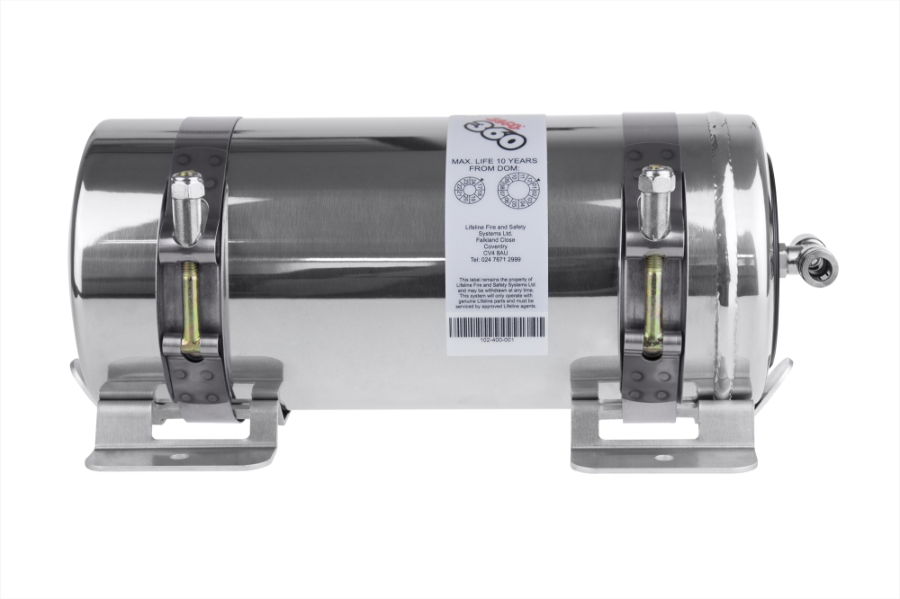

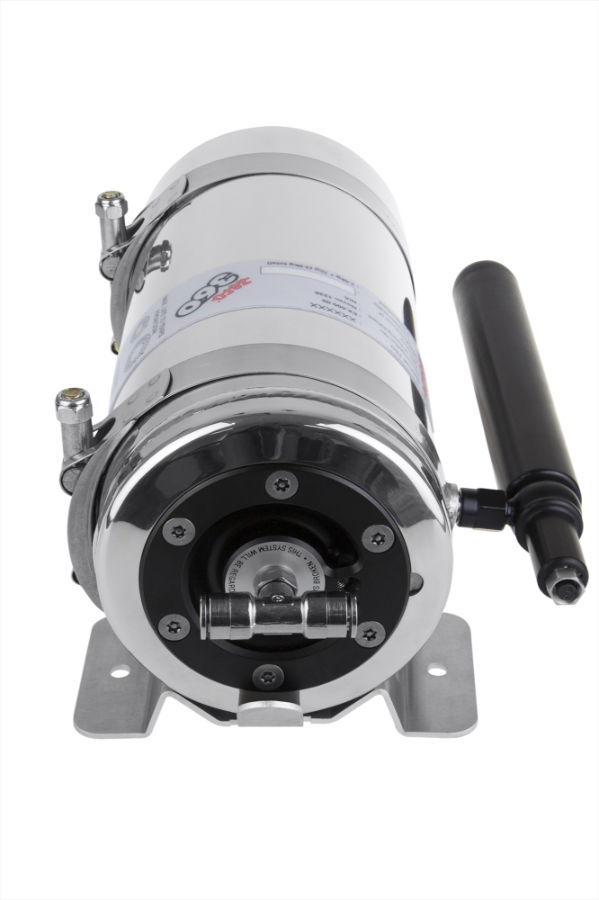

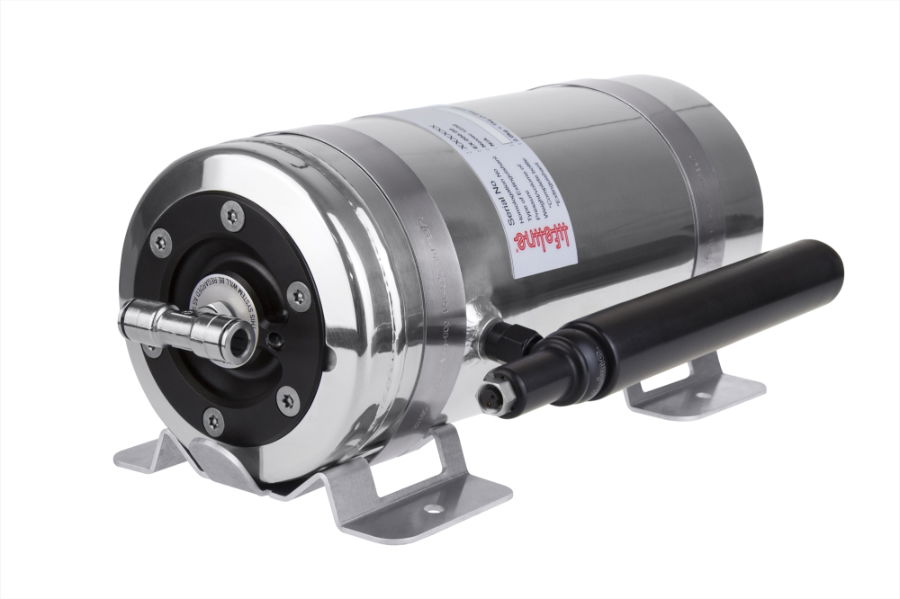

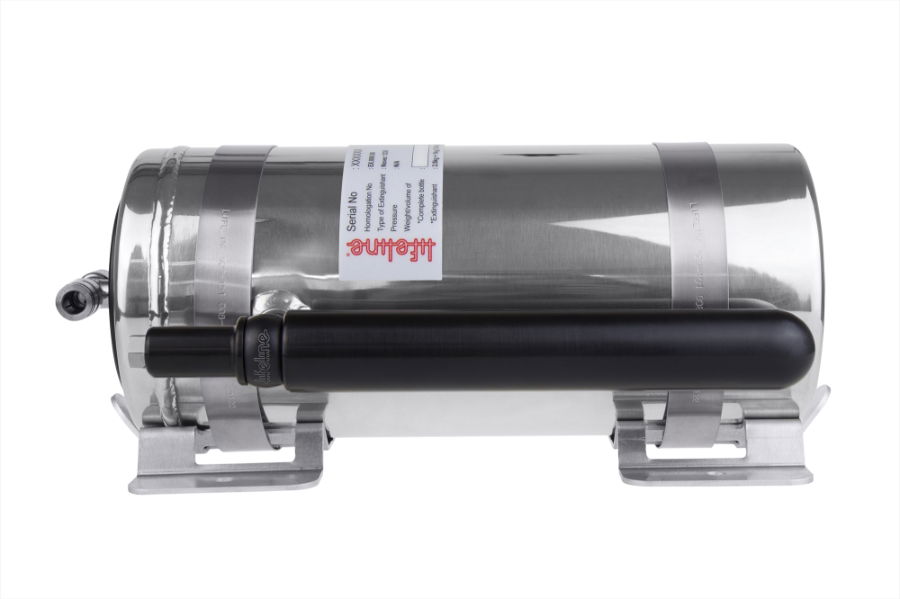

The Novec 1230 Zero 360 range of car fire extinguishers offer all of the advantages of a small compact system without compromising on performance. This makes the 3kg models particularly suitable for single seater applications. This Lifeline Zero 360 Novec 1230 3Kg remote charge extinguisher system is manufactured using an aluminium cylinder that offers weight and space saving benefits. Expertly designed to suit all Club Level, Historic and Fast Road applications.
Electric systems are activated by pressing a strategically mounted momentary push button. Using a military specification actuator to detonate the extinguisher, the actuator extends a steel pin upon activation breaking a frangible seal in the neck of the cylinder and thus discharging the contents. All electrical systems have their own independent power supply called a power pack that has facilities for checking the battery strength and circuit continuity as well as giving a visible indication that the system is armed.
The Remote Charge system allows for the separation of propellant and extinguishant giving a more efficient tackling of the fire. This also allows for a neater packaging of the system making these units popular in many categories of motorsport including Prototypes, Sports, GT and Touring Car championships throughout the world.
This Lifeline Zero 360 Novec 1230 3Kg remote charge extinguisher kit was formerly known as a 104-300-001.
This series of systems has been awarded FIA homologation number EX.028.08.
There is also available a bottle only option or just the installation kit which can be useful if you have multiple cars. The installation kit is everything listed in the full kit but does not include the actual extinguisher bottle.
| Length (mm) |
272 |
| Diameter (mm) |
108 |
| Weight (Kg) |
4.2 |
| Capacity (Kg) |
3.00 |
| Homologation |
EX.043.17 |
| Technical List |
16 |
The full kit includes:
| Product Code |
Description |
Quantity |
| 106-001-009-B |
Zero 360 3kg Remote Charge- Bottle Only |
1.000 |
| 920-100-007-FIA |
Bracket & Straps - Small Remote Charge |
1.000 |
| 952-408-002 |
8mm Bulkhead Fitting |
1.000 |
| 990-100-001 |
Decal Pack |
1.000 |
| 952-408-001 |
8mm Equal T Connector |
1.000 |
| 951-200-002 |
Tube Clips - Fits all Sizes |
5.000 |
| 951-101-008 |
8mm - Alloy Semi Rigid Tube - per metre |
8.000 |
| 955-300-004 |
Zero 360 Double 'Z' Nozzle - Straight Inlet - c/w Cartridge |
3.000 |
| 955-300-003 |
Zero 360 Nozzle - Straight Inlet & Locking Nut |
2.000 |
| 941-000-004 |
Power Pack - Current - Binder Socket |
1.000 |
| 943-101-005 |
Plug & Lead - Zero 360 Remote Systems Only |
1.000 |
| 942-100-004 |
Switch - Internal/External - Waterproof - Aluminium Bezel |
2.000 |
| 901-120-001 |
Saddle + Ty-rap for Remote Charge |
1.000 |
This extinguisher meets FIA Technical List 16 requirements and is suitable for competition in Motorsport UK and FIA events past 2022. You should however consult your series/championship regulations before purchasing.
